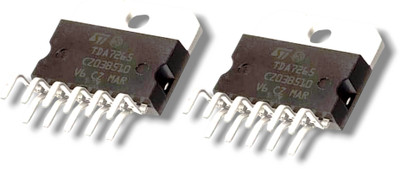

The TDA7265 is a high-performance dual bridge audio power amplifier IC, delivering 25W + 25W of output power into 4? loads or 12W + 12W into 8? loads. With low distortion of 0.1% THD and high gain of 40dB, it provides high-quality audio performance. The IC features short-circuit protection, thermal shutdown, and mute and standby functions, ensuring reliability and ease of use. Suitable for various audio applications, including home and car audio systems, portable devices, and professional equipment.Features1. Dual Bridge Configuration: Two independent channels with bridge-tied load (BTL) configuration.2. High Output Power: 25W + 25W (4?, 1kHz, 10% THD) or 12W + 12W (8?, 1kHz, 10% THD).3. Low Distortion: 0.1% THD (1kHz, 1W, 4?).4. High Gain: 40dB (min) gain.5. Short-Circuit Protection: Protected against short circuits to GND, VCC, or output.6. Thermal Shutdown: Automatically shuts down in case of overheating.7. Low Quiescent Current: 30mA (max) in standby mode.Applications1. Home audio systems2. Car audio systems3. Portable audio devices4. Professional audio equipmentPackage1. DIP24: 24-pin dual in-line package2. SO24: 24-pin small outline packageOperating Conditions1. Supply Voltage: 10V to 18V2. Operating Temperature: -20°C to 150°CAdditional Features1. Mute Function: Allows for muting of the output.2. Standby Function: Reduces power consumption in standby mode.
