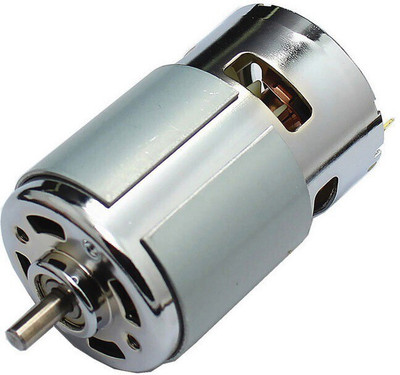

High Torque Rated Voltage Current : DC 12V No Load Current: 0.2Amps (Max ~3 Amps) No load Power Consumption: 2.4 Watts (Max ~15 Watts) No Load Speed: 7000RPM Motor Shaft Diameter: 3.17mm Mounting Screw Hole Diameter : 3mm Distance between Screw Holes: 25mm Diameter of the Motor: 36mm Length of the Motor (Body): 50mm Length of Shaft: 16mm Main Color : Silver Tone Material : Metal Net Weight : 250gm Cylindrical shape and with 5mm diameter shaft and 2 pin connectors. Great replacement for the rusty or damaged DC motor on the machine. Comes with magnetic shield (as shown in the image) To run this motor, you would need a 12 Volt DC Power supply. The Amperage rating on it should be 1 Amp or above. Alternatively, you can also directly connect it to a 12 Volt Battery. Perfect for various DIY applications.
