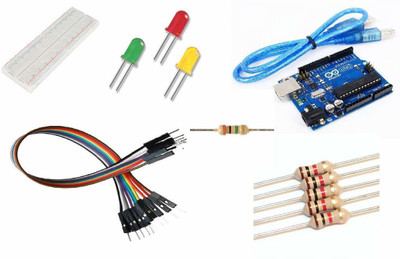

In this project, an Arduino based Traffic Light Controller system is designed. It is a simple implementation of traffic lights system but can be extended to a real time system with programmable timings, pedestrian lighting etc. This project will imitate cross pedestrian traffic light control with push button switch. We will use three LEDs(RED,YELLOW,GREEN) to imitate traffic lights in main road, use two LEDs(GREEN,RED) to imitate pedestrian cross light, use a push button to imitate pedestrian cross button. When push button is pressed, the GREEN light in main road will turn off and Yellow light will turn on for 2 seconds,then RED light will turn on, then GREEN pedestrian light will turn on. After 4 seconds, the Green pedestrian light will become flashing for 5 seconds and turn off. Red pedestrian will on and Main Road Red light will off and Main road green light will on. Products List:- Arduino Uno x 1 1M ohm x 1 1K ohm x 5 Push Button x 1 Wires x 8 Breadboard x 1 Red LED x 2 Green LED x 2 Yellow LED x 1
