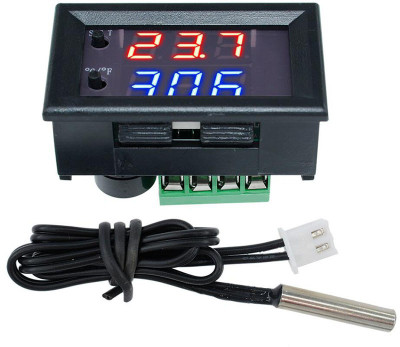

Connect the power supply and the load power supply to the controller, this time above the measured temperature is displayed as red, the blue under it(blue or red) shows the desired set temperature, according to STC (+) C / F (-) to set the desired set temperature and so on, 3 seconds after setting the automatic confirmation return, then the controller automatically performs relay by setting off, the thermostat output 10A relay, to meet a variety of high-power load, make sure line correctly Long press SET 5 seconds can be SET to enter the main menu, press on STC (+) C/F (-) switch P0 - P8, When adjust P0 - P8 parameters, such as the need to adjust the P0, at the same time on STC (+) (-) C/F, P0 numerical flashing, hold by STC (+) C/F (-) adjustment, adjust after OK, again at the same time on STC (+) C/F (-) once confirmed, P1 - P8 also C/F mode conversion function Press C/F key, show that F mode, press the C/F key again, shown as C model, the factory pattern for C, (note: if you have customers in the use of temperature error is big, may be you are F mode) Indicator light, digital tube status description Indicator light: extinguishing means the relay is broken and the relay has been closed. Digital tube: the above shows LL for the sensor to open. The display of HH is forced to disconnect the relay for the temperature controller outside the measuring range. Display - for high temperature protection.
