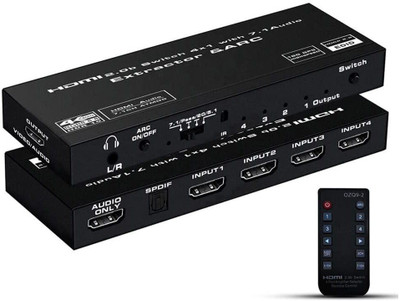

There are 4 ports HDMI input,1 port HDMI output,1port Toslink audio output,1 port 3.5mm audio jack,1 port HDMI audio output.HDMI/optical toslink SPDIF audio output support audio return function(ARC).3.5mm jack port output support extract function, it does not support ARC.Support 480i/480p/576i/576p/720p@50HZ/1080P@50/60HZ/4K*2*@30/60HZ with 24 bit RGB 8:8:8/YcbCR 4:4:4 (4k@60HZ YUV 4:4:4).Max bandwidth per channel:600MHz. Max Baud rate per display:18.5Gbps.Compatible with HDR 10,HDMI 2.0b.HDCP 2.2/1.4/1.3/1.2/1.1.Supports smart auto switch function.Supports IR and Panel button control.This HDMI Switch support LPCM 7.1CH,Dollby Tru-HD,DTS-HD,AC3,DTS,DSD audio format. But can't decode these audio formats. If your Amplifier or soundbar not support these audio formats, there will no audio out from your soundbar or amplifier. At this situationless set the audio format to PCM/LPCM on your HDMI source.HDMI audio Extractor-with Optical TOSLINK SPDIF+3.5mm+HDMI audio out allow you extract the sound from the HDMI input source(compatible with PS4,Xbox on etc.) to your soundbar or amplifier need connecting TV or Monitor.HDMI ARC Adapter-Extractor the Audio from TV to Soundbar or Amplifier. Connect your TV HDMI(ARC) port t o this switch HDMI output port with HDMI cables. Then optical/HDMI cable to the soundbar, Speaker, Home theater receivers etc., the open "ARC" button.Support 24/30/36 bit deep color per channel(Kindly Note: it doesn't compatible with DVI, we do not recommend you use HDMI to DVI cable connect to your projector/monitor).We high recommend use AWG26(19+1) standard HDMI2.0 cable,the distance could reach up to 5m before and after when the resolution is 4K@60Hz,can reach up to 8m before and after if the resolution is below 4K@30Hz.
