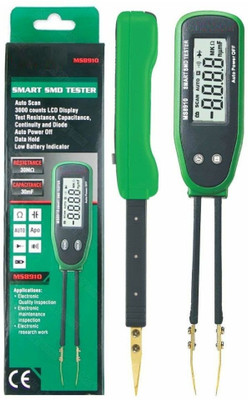

This handheld smart tester is designed to measure SMD, and it can identify resistor, capacitor and diode automatically. And you can also press its "FUNC" button to select its measuring mode. It has the function of continuity testing. With the function of data holding, you can read and record data easily. The Tester is a handheld and battery operated very convenient small Tool that is specially used to measuring SMD (Surface Mounting Device), there are Chip type resistor, Chip type capacitor and diode. Moreover, the Tester also have the continuity checking function. Automatically identified the passive Component as has been indicated above. Therefore, the measurement is allowed by fully automatic detection. The entire outer surface of the Tester case has been with thermo plastic and the two testing pins has been gold-plated, so that it is reduce pin contact resistance and prevent to get rusty. Features: 3000 counts LCD display Full automatic measurement Small size and light weight, handheld and portable test tool. Used to measure SMD, such as Chip resistor, Chip capacitor and Chip diode devices. Auto scanning, it identifies resistor, capacitor and diode automatically. Continuity testing. When the resistance is less than 30? it will sound. It also can be operated manually. You can press the button? FUNC? to select one certain measuring mode. Has the function of data hold. Long press the FUNC key to turn on/ off this tester. Automatic power off after it is idle for about 10 minutes. And on this occasion, it can be recovered to use by pressing any key. Over load indication. Low battery indication. Gold-plated test pins, which can induce its contact resistance and prevent it from rusting. Specification: Operating temperature & Humidity: 0 - 40? (32 ~104?) & < 80% RH Storage temperature & Humidity: -10 - 50? (14 ~ 122 ?) & <70%RH Safety Class: IEC61010-1, 50V CAT III Power Supply: EMC: According to CE regulation 89/336. Dimension (L x W x H) & Weight: 170 x 31 x 17mm, Approx. 48.6 g Package included: 1 x MASTECH MS8910 SMD Tester 2 x free replace test pins 1 x Unit of CR2032 Battery 1 x English user manual 1 x Plastic Care Box?
