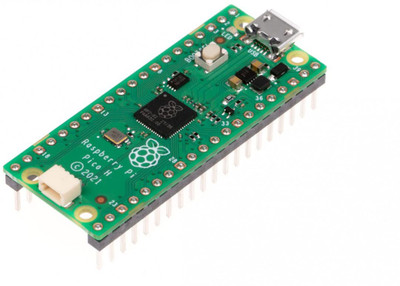

The Raspberry Pi Pico H has a custom designed 40-pin header and a 3-pin JTAG connector pre-soldered. At its heart is RP2040, a Raspberry Pi-designed chip, which features two ARM Cortex-M0+ cores clocked at 133MHz with 256KB RAM, 26 GPIO pins, and a broad range of interfacing options. This is paired with 2MB of on-board QSPI Flash memory for code and data storage.SpecificationsRP2040 microcontroller chip designed by Raspberry Pi in the United KingdomDual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz264KB of SRAM, and 2MB of on-board Flash memoryUSB 1.1 with device and host supportLow-power sleep and dormant modesDrag-and-drop programming using mass storage over USB26x multi-function GPIO pins2x SPI, 2x I2C, 2x UART, 3x 12-bit ADC, 16x controllable PWM channelsAccurate clock and timer on-chipTemperature sensorAccelerated floating-point libraries on-chip8x Programmable I/O (PIO) state machines for custom peripheral supportDimensions: 21mm(W) x 51.3mm(L) x 12.9mm(H)Packing Included :1 x Raspberry Pi Pico H
