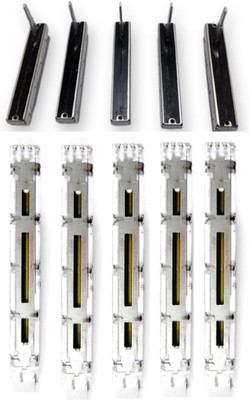

Specification:Product Name: Sliding PotentiometerResistance Value: 10k OhmModel: SC6080GHAdjustment Type: Slide adjustmentType: Double linear rotaryMaterial: Carbon Film Mechanical Characteristic:Nominal Resistance: 10KRated Power: 0.25 (W)Resistance Tolerance: ±20 (%)Sliding Noise: Less Than 68m (V)Resolution: 100 (%)Zero Resistance: 2 (?)Contact Resistance: 5 (?)Insulation Resistance: 100 (M?)Whole Length: Approx. 75mm / 3.0inPackage Content: 10 * B103 10K Ohm Slide Potentiometer Linear Potentiometers are variable resistors whose resistance can be varied by moving the handle linearly from one end to another. This is a 10K Linear Potentiometer,which means when the handle is at one end the resistance is 0 ohms. Moving the handle towards the other end will change the resistance towards 10K as per the handle movement. The potentiometer comes with a metal handle which give best feel for usage.We also sell knobs for these sliders. Knobs are available in different colors and can be mounted on the metal handle for better grip and feel.Can be easily connected to the analog pin on an Arduino or a Raspberry Pi to get the handle position. This is traditionally manufactured for audio and volume controls. But is great for controlling lights or a fan, linear encoder, etc This is breadboard and perforated board friendly and easy to use.
