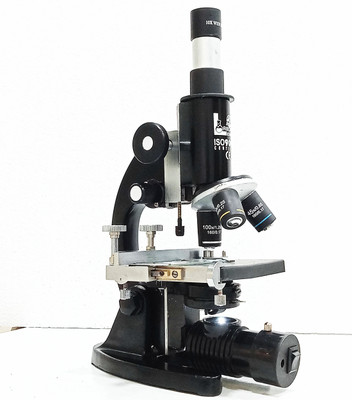

This monocular microscope features a robust and well-balanced body designed for comfortable use, with a horizontal inclination of 90 degrees that enhances viewing ease. The fixed square stage measures 110 mm x 110 mm and is equipped with spring-loaded clips to securely hold slides in place. For focusing, the microscope employs both coarse and fine adjustment mechanisms, allowing for precise control without a scale. The triple revolving brass nosepiece includes a click-stop feature to ensure proper centering of objectives. Additionally, the fixed sub-stage Abbe condenser, with a numerical aperture of 1.25, incorporates an iris diaphragm to provide optimal control over illumination. The illumination system utilizes a plano-concave mirror, ensuring effective light management for clear and detailed observations.A compound microscope is a microscope that uses multiple lenses to enlarge the image of a sample. Typically, a compound microscope is used for viewing samples at high magnification (100x - 1000x), which is achieved by the combined effect of two sets of lenses: the ocular lens (in the eyepiece) and the objective lenses (close to the sample).
