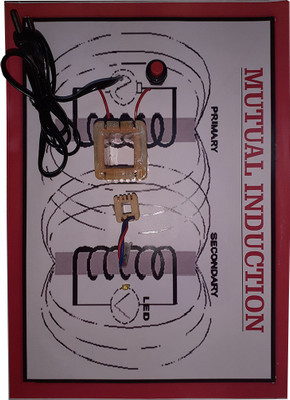

In this given model of Mutual Induction we observe that step dowN transformer provides 6V ac to Ist coil connected directly to it. It provides the source voltage to this coil. The second coil, identical to the first coil, is not physically or electrically connected to coil-1 (primary). The primary flux is providing a source induce voltage to coil-2 (Secondary) due to Mutual Induction & LED connected to it will lit up. The distance between coil-1&2 changes the intensity of LED. COMPONENT USED : 1.Step down Transformer 6V dc 1 2.Ferrite Rods with enameled 2 coil windings (200 turns each) 3.Light Emitting Diode 1 4.Main Cord, wires, spares etc.1
