3 Review(s)

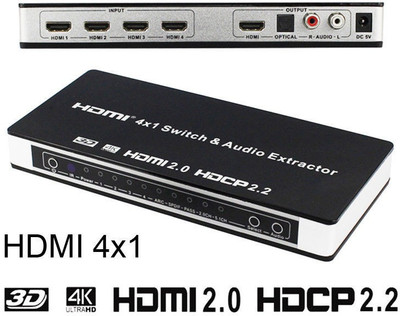

Product Description 4 Port HDMI Switch & Audio Extractor SPDIF/RCA stereo outputs with Ultra HD 4K ARC EDID setting allows you to connect four HDMI input to one HDMI output. It also allows you to connect to a 7.1 channel digital surround on HDMI output or 5.1 channel digital surround sound on the Toslink digital output or 2.0 channel PCM audio on the RCA stereo output. HDMI switch 4x1 and Audio Extractor, features 4 HDMI inputs and 1 HDMI output, with the remote control to choose which HDMI in or switch it with the button on the panel Specification: 1.Input: HDMI x 4. 2.Output: HDMI x 1, Toslink / SPDIF x 1, Stereo RCA x 1. 3.HDMI resolution: Ultra HD 4K2K@60Hz max; 3D 1080p/24 max 4.Support video color format: 36-bit Deep Color al l channels maximum 5.Audio output: HDMI pass-through; Up to 7.1 CH; Toslink output up to 5.1 ch;RCA L/R output stereo audio 6.Max bandwidth per channel: 600MHz 7.Max baud rate per display: 18 Gbps 8.Input/Output TMDS signal: 0.5~1.5V p-p (TTL) 9.Input cable distance: ?50ft/15m 24 AWG HDMI high speed Cable at1080P@24bit 60Hz 10.Output cable distance: ?50ft/15m 24 AWG HDMI high speed Cable at1080P@24bit 60Hz 11.Operating Temperature range: 5°F to 131°F / -15°C to 55°C 12.Operating Humidity range: 5% to 90% RH(No Condensation) 13.Dimension(LxWxH): 218x106x28mm 14.Max working current: 1A 15.External Power Supply:Input:AC(50/60Hz) 100V-240V;Output: DC5V/2A Package included: Power Adapter x 1 Remote Control x 1 User Manual x1 HDMI 4 x 1 Switch & Audio Extractor x1.
