microware HDMI 2.0b 2x1 Switch with Audio Extractor and ARC, support 4K HDR Media Streaming Device(Black)
Quick Overview
Product Price Comparison

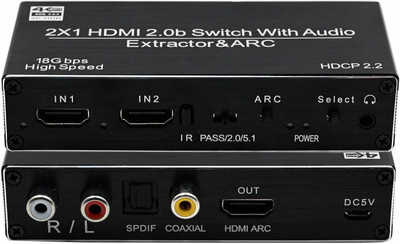

HDMI 2.0 Switch is a 2 port HDMI 2.0 4K 60Hz HDMI switcher for your latest gaming and home theatre setup. It supports 2 HDMI inputs and 1 HDMI output, allowing for HDMI 2.0 and HDCP 2.2, along with 4K Ultra HD and compatibility on all HDMI.Specifications:There are 2 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial Output, L/R output, 3.5mm Jack output. Coaxial and Toslink port output support audio return function (ARC)3.5mm Jack port output and R/L support audio extract function ,it does not support ARCsupport 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.Max.bandwidth per channel: 600MHz.Max. baud rate per display: 18.5GbpsCompliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master AudioSupport HDR 2K HDR10Supports Dolby True-HD, DTS-HD, AC3, DTS, DSD. This HDMI Switch will output the Dolby True-HD, DTS-HD, AC3, DTS, DSD audio format, But can't decode these audio formats.Three Audio mode settings:HDMI Audio copy: The output audio format depends on the HDMI input signal.The audio can be copied to the HDMI output device.2.1CH Mode: Set 2CH to get analog stereo.Extract the digital 2CH PCM stereo audio signal from the HDMI input and convert it to 2CH analog stereo output through its RCA L/R analog/Optical SPDIF/Coaxial output at the same time5.1CH Mode: Set 5.1CH to get 5.1 digital surround.(HDMI input source must support 5.1CH), Which can be extracted via Optical SPDIF and Coaxial output. It support LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio.Package Included:2X1 HDMI Switch x1Power adapter x 1IR Remote x 1
