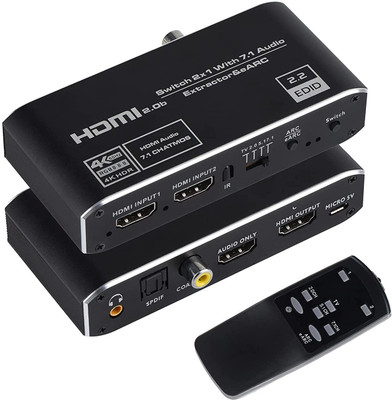

2x1 HDMI Switch With Audio Extractor?4K HDMI 2.0 Audio Extractor at high performance. It has 2 HDMI Input and 1 HDMI output with audio Extract Function. Support ARC and eARC Function. The Extract Audio can be output by 3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port. It allows user to use the existing audio Receiver to receive 4Kx2K@60Hz, HDCP 2.3 content audio. The product also supports HDMI loop out, as well as 10bits HDR(High Dynamic Range).?Support ARC and eARC Function?Extract the Audio from TV to Soundbar or Amplifier. Connect your TV HDMI(ARC or eARC) Port to this Audio converter HDMI Output(ARC/eARC?Port with HDMI Cable, then connect Optical cable or HDMI Cable or Coaxial to Amplifier or SoundBar. Please Note: eARC and ARC function is only available from the Optical SPDIF,Coaxial and HDMI Audio Port.?High HDMI Input Resolution?Support Up to 4K@60Hz RGB 8:8:8. Color Space: RGB 8:8:8, Ycbcr 4:4:4/ 4:2:2/ 4:2:0. Color Deep: 8-bit, 10 bit, 12 bit(1080p@60HZ); 8-bit (4kx2k@60Hz RGB 8: 8: 8/YUV 4: 4: 4) 8-bit, 10-bit, 12-bit(4Kx2K@60HZ Ycbcr 4:2:2/4:2:0).?Supported HDMI Audio Extract formats?HDMI Audio Formats: PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS: X. Support Blue-ray 24/50/60fs/HD-DVD/XVYCC. SPDIF/Coaxial Formats: LPCM2.0/5.1, Dolby Digital 2.0/5.1, DTS2.0/5.1.When USED HDMI Output eARC/ARC Function: TV eARC/ARC audio output port should Connect to TV with ARC/eARC function.?Compatibility?HDCP support 2.2/2.3, compatible with HDMI 2.0b. HDMI Input support: Computer, Laptop, PS3, PS4, Xbox, Blu-ray DVD Player, STB etc. HDMI Video Output support: Projectors, HDTVs, Screen, Monitor, etc with ARC/eARC Port. HDMI Audio Output support: Home theater. SPDIF / Caoxial Output support: Speaker. 3.5mm L/R Output support: headphone. Power Port: DC/5V.
