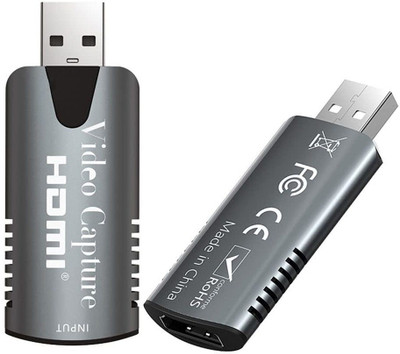

This USB 2.0 acquisition card can capture both HDMI video and HDMI audio at the same time.--It can transmit audio and video signals to computers and smartphones for preview and storage.---Suitable for HD acquisition, teaching recording, medical image, etc..Feature:1. Support the maximum input resolution of 3840x2160@ 30Hz;2. Support the maximum output resolution of 1920x1080@ 30Hz;3. Support 8/10/12 bit color depth;4. When standard AWG26 cable is used, the input transmission distance is up to 15m (resolution of 1080P and below);5. Support most acquisition software, such as for VLC, OBS, Amcap, etc;6. Support for windows, Android and Mac OS;7. Conform to USB video UVC specification;8. Conform to USB audio UAC specification;9. Without external power supply, small and portable.Specification:HDMI resolution: up to 3840x2160 @ 30HzVideo input format: 8/10/12 bit color depthVideo output mode: YUV, JPEGVideo output resolution: maximum output resolution 1920x1080 @ 30HzSupport audio format: L-PCMInput cable length: ? 15m, AWG26 HDMI standard cableMaximum working current: 0.4A/5VDCOperating temperature range: (- 10 to + 55 ?)Size: 64x28x13mm/2.52x1.1x0.51inConnection operation:1: Connect the UHD signal source and the HDMI input port of the USB acquisition card with one HDMI line2: Plug the USB male of the USB acquisition card into the USB port of the computer3: Collection operation steps (OBS): open the software-add a new source-select "video capture device"-set the screen size-select "studio mode" (double window)-click "start recording"Computer hardware configuration requirement:CPU: PC i5-3400 or above; NB i7-3537u 2.0GHz or aboveDisplay card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or aboveStorage: 4G RAMContent:1 * Video Capture Card1 *User ManualNote:All images and descriptions are for illustrative purposes only. Product specification, functions and appearance may vary by actual usage. The color deviation is subject to actual system configuration and slight dimension difference is allowed due to manual measurement..
