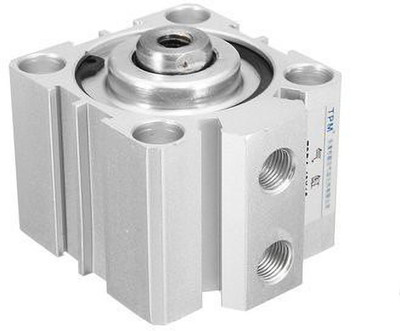

Specification: Product Name Air Cylinder Model SDA40x30 Action Type Double Action Material Aluminum Alloy Bore 40mm Stroke 30mm Max Presssure 1MPA Rod Diameter 16mm Rod Thread Diameter M14X1.5 Air Hole Diameter 1/8 Overall Size(Approx) 67x58x55 Quantity 1pc Features: 1. Riveted structure is adopted to connect the cylinder body and back cover, and piston and piston rod to make it compact and reliable. 2. The inner diameter of the bidy is treated with rolling followed by the treatment of hard anodizing, forming an excellet abrasion resistance and durability. 3. The seal of piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of grease reservation. 4. Compact structure can effectively save installation space. 5. There are magnetic switch slots around the cylinder body, which is convenient to install sensor switch. 6. Mounting accessories with various specifications are optical. Package Included: 1pcs x SDA40x30 Air Cylinder
