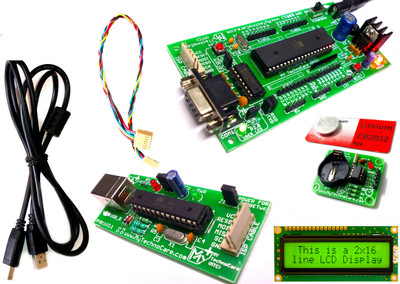

ABOUT 8051 PROGRAMMER: For How To Program 8051 AVR Microcontroller |How to install driver |Circuit Diagram-Connection|Driver For All Windows OS 64|32-bit (All in 1 RAR file) Download= https://bit.ly/progallinfo | AVR 8051/8052 USB ISP Programmer For Atmel AVR & 8051 Microcontroller With Free USB Cable.Programmer Support many Digital Microcontrollers like (89S51, 89S52, AT89SXX, Classic AT90SXX, CAN Series) & (AVR, ATmega, ATtiny) ATmega 8/328, 16, 32, etc with the same Programmer. For Supported IC List: SEE Product Images. It is a low-cost USB based programmer.No need to take out Target Micro controller from the development Board. The programmer will work with a variety of Atmel AVR & 8051 microcontrollers.it allows You to Read/Write the Microcontroller Flash, EEPROM, Fuse Bit & Lock Bit. Support Windows OS(XP to 10), Mac OS X & Linux.SCK Option to Support Targets With Low Clock Speed(<1.5 MHz).5 KB/sec Maximum Write Speed. The programmer can Provide 5V supply for Target Microcontroller, so No Need of Any External Supply. Status LEDs|Green LED: Power Supply |RED LED: It is ON While Programmer is Busy.6 pin Polarized ISP Interface for Easy Connection. Supported Software: Progisp, AVRdude, Khazama AVR Programmer | ABOUT 8051 DEVELOPMENT BOARD: If You are Learning Microcontroller Programming & want to make Project based on 8051 microcontrollers then This Board will help you. With this board, you can Develop & Prototype with any of 8051(AT89S51, AT89S52, P89V51RD2, AT89Cxx) 40 pin microcontrollers.1.5 Amp Bridge Rectifiers allow this board to be powered with both AC & DC power supply adapters. It has RS232 Serial port for flashing like P89V51RD2 (NXP) microcontrollers & also uses for interfacing GSM & GPS Module, RFID Module. There is 5V, 12V, GND Power bus which allows to Power external Peripherals module. FEATURES of 8051 Board: DIP 40 Pin Microcontroller IC Socket For Easy Insert/Removal of Microcontroller IC. RS232 Interface Circuit for Easy Communication with PC & other Serial Devices(GPS, GSM Modems, etc).High-quality FR-4(1.6 mm) PCB.Recommended Input Voltage: 9-12V. 5 mm Power Plug-in DC Jack. 5V regulator (LM7805) circuit & Power ON-OFF switch & power indication RED LED. GREEN USER LED connected to P2.0 through jumper JP3.On-Board Input User Switch P3.3 through jumper JP2.On-Board Input External Interrupt Switch (INT1) at P3.3 through jumper JP2.Quartz Crystal 11.05892 MHz.Port Extensions for all PORT with Detailed Pin Labeling for Easy Identification of Pin.External Pull-Up resistors for Port 0.On-board ISP connector for loading HEX file into Microcontroller like AT89S51/52 etc.Four 3mm mounting holes for easy mounting.On-board Reset button.Dimensions: 12cm x 6.4cm. | ABOUT 16x2 LCD DISPLAY: This is 16 x 2 LCD Display with Yellow/Green Backlight ASCII Alphanumeric Character.16×2 LCD Display Support mostly All Digital Microcontrollers such as Arduino, 8051, PIC, AVR, ARM, MSP, STM, Raspberry Pi, etc.16×2 LCD is a basic 16 character by 2 line display Yellow/Green Backlight. Utilizes the extremely most common HD44780 parallel interface chipset. Even more, it has JHD162A Compatible Pinout Diagram & Command Interface code that is freely available. Finally, You will need 7 general I/O pins (If used in 4-bit Mode) to interface to this LCD screen. It also Includes LED backlight. It is Commonly Used in Student Project, Collage, copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices.LCD display module with Green/Yellow Backlight.SIZE: 16×2 (2 Rows and 16 Characters per Row). It can display 2-lines X 16-characters. Operate with 5V DC. Wide viewing angle & high contrast.Built-in industry standard HD44780 equivalent LCD controller.LCM type: Characters | ABOUT DS1307 RTC MODULE: DS1307 I2C Real Time Clock Kit with 56 Byte NV RAM.It Supports All Digital Microcontroller such as Arduino,8051,PIC,AVR,ARM,MSP,STM,Raspberry Pi etc.This small breakout board uses the most popular DS1307 to keep track of the Current Year, Month, Day as well as the Current Time. The module comes fully assembled & includes a small Lithium coin cell battery that will run the RTC for a minimum of 9 years without an external 5V Power supply. The DS1307 RTC is Accessed via I2C Protocol.FEATURES:(hh:mm:ss) Hour : Minutes : Seconds AM/PM|(DD/mm/YYYY) Day Month,Year.Leap year Compensation Accurate Calendar up to the year 2100.Battery Backup:3 Volt Li(Lithium) Coin.1Hz output pin.5 Volt Power Supply.56 Bytes of Non-volatile Memory Available to User. Plugs into any breadboard or You can use wires. Onboard power indication RED LED. Four mounting Holes 3.0 mm for Easy Mounting.Download Manual = https://bit.ly/DS1307rtc | NOTE: POWER SUPPLY Adapter is NOT Included WITH THIS ITEM. For Example Code of 8051 Microcontroller. Have any Queries; Please Contact Us mytechnocare.info@gmail.com or Visit Mytechnocare Website.|
