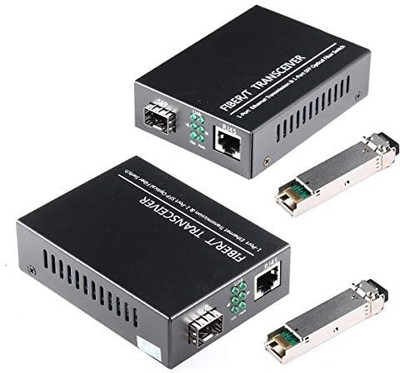

Product Include 2xSingle-mode Gigabit Ethernet Fiber Media Converter 2xBiDi SFP slot LC Transceiver module up to 25km 2xDC Power Adapter Output voltage:5V DC/1A 1xProduct Manual,Multi-Language Quick Installation Guide Feature Introduction 1.Optical Port Data Rate:1.25Gbps,10/100/1000Base-Tx to 1000Base-LX SFP Fiber Gigabit Media Converter 2.Interface: SFP Port+RJ45 Port, RJ45 Port Data Rate: 10/100/1000M auto-negotiation 3.Fiber Type:Single-mode, Fiber Connector:Single LC Fiber,Wavelength:1310nm, Reach:20km,Included Power Supply Weight:0.35kg Excellent Function 1.Super Heat Dissipation:Air-vent on both sides and metal enclosure provide better heat dissipation,low power consumption and long service life 2.Lightning protection.Strong anti-interference ability.High-speed and stability signal conversion. 3.Standalone design with simple plug-and-play set-up.Compact size provide more flexible installation options.Dimensions:95x72x27mm(DxW xH) 4.Power Adapter Safety standards: UL/EN60950 GB4943, Power Dissipation ≤3 watts, External Power:AC100V~240V 5.High-quality Conversion Chip & Easy Installation,Operating temperature: 0°C to 60°C.Storage temperature:-20°C to 70°C.Humidity:5% to 90% RH Wide Applications 1.Extend or bridge networks using fiber cable 2.Provide connectivity to users in an isolated area of a large complex or in a separate building 3.Ideal for secure connections required by government or corporations where EMI is not acceptable LED Indicators 1.FP:Light on when fiber speed is 1000Mbps,else light off 2.TP:Light on when TP speed is 1000Mbps, else light off 3.Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving 4.FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active 5. PWR: Light on when DC power on,else light off.
