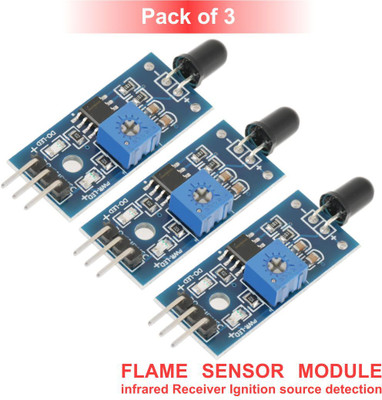

Scienticy : [A] Flame Sensor infrared Ignition source detection module can be used to detect fire sources or other light sources of the wavelength in the range of 760nm - 1100 nm. It is based on the YG1006 sensor which is a high speed and high sensitive NPN silicon phototransistor. Due to its black epoxy, the sensor is sensitive to infrared radiation. Sensors can be a great addition to a fire fighting robot, it can be used as robot eyes to find the fire source. When the sensor detects flame the Signal LED will light up and the D0 pin goes LOW. This tiny sensor is Arduino compatible can use to detect flame or wavelength of the light source within 760nm~1100nm also useful for Lighter flame detection at a distance of 80cm. Greater the flame, the farther the test distance. It has a Detect angle of 60 degrees and is very sensitive to flame spectrum. It produces the one-channel output signal at the D0 terminal for further processing like an alarm system or any switching system. The sensitivity is adjustable with the help of a blue potentiometer given on the board....[B] Indicator light: Green one for switch, red one for power. Built in a potentiometer for sensitivity control. On-board signal output indication, output effective signal is high, at the same time the indicator light up, output signal can directly connect with microcontroller io. Can detect fire or wavelength in 760 ~ 1100 nm nano within the scope of the light source. Detection angle about 60 degrees, the flame spectrum especially sensitive. The flame of the most sensitive sensors flame, the regular light is also a response, generally used for fire alarm purposes. Uses:
