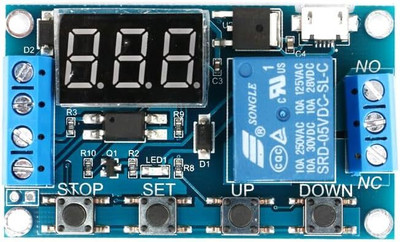

Product parameters1: Working voltage: 6-30V, supports micro USB 5.0V power supply2: Trigger signal source: High level trigger (3.0V-24V). The signal ground is not connected to the system ground to improve the system's anti-interference ability (it can also be short circuited to a common ground)3: Output capability: can control devices up to 30V DC 5A or up to 220V AC 5A4: Static current: 20mA Working current: 50mA5: Timing range: 0.1-999 minutes continuously adjustable;6: Service life: greater than 100000 times; Working temperature: -40-85 ?; Size: 6.2 * 3.8 * 1.7cm7: Equipped with optocoupler isolation, enhancing anti-interference ability, industrial grade circuit board, set parameters for permanent memory after power failure.Special attention: The relay output is a passive contact, not a live output, which controls the opening and closing of a circuit.
