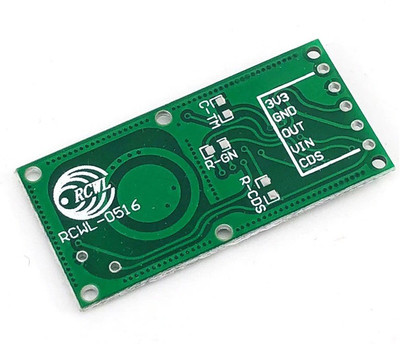

Features Equipped with RCWL-9196 chip supporting 4-28V wide voltage input, high level signal output when detecting the motion with active repeat trigger 360 degree no blind angle detection with 5-7m deteciting distance, the detection not affected by the surroundings, better performance than the IR sensor Support night detecting function turn on /off, adjustable repeat trigger time and detecting distance by add the SMD components to the corresponding pins Working Voltage: DC 4-28V, Board Size: 35.9 X 17.3mm/1.41 X 0.68inch Specifications Operating Voltage: 4-28V Operating Current: 2.8mA (typical); 3mA (max) Detection Distance: 5-9m Transmitting Power: 20mW (typical); 30mW (max) Output Voltage: 3.2-3.4V Output Voltage Driving Capacity: 100mA Trigger Way: repeat trigger Output Control Low Level: 0V Output Control High Level: 3.3V Operating Temperature: -20~80 celsius Storage Temperature: -40~100 celsius Adjustment Part Introduction: Pin Definition: 3V3:3V3 power output GND:ground OUT:control output;when detect moving objects,it will output high level VIN:input voltage,4-28V CDS:enable control chip,lower than 0.7V,OUT will output low level all the time
