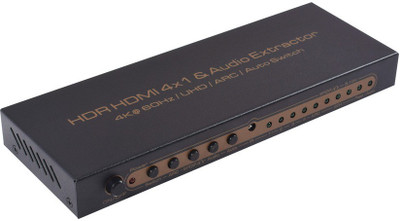

4 port HDMI 2.0 HDR Switcher with Audio Extractor Allows switching of 4 HDMI 2.0 inputs to an LCD display and Audio Receiver simultaneously. This is a high-performance HDMI Matrix switcher box with four HDMI 2.0 inputs, it allows switching of any source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be shown on any of the two displays simultaneously, and supports 4K×2K, 3D, up to 48-bit Deep Color. It also has a built-in Audio splitter for connection to an amplifier, receiver or home theater set ups via Toslink or HDMI audio output. SPECIFICATIONS: HDMI resolution……. 4Kx2K@60Hz /4Kx2K@30Hz/ 1080p/1080i/720p/576p/576i/480p/480i HDMI In/Out Supported Audio Format : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD Audio output : HDMI?SPDIF and 3.5mm Stereo Digital Audio Output Supported Audio Format : LPCM2.0/DolbyAC3/DTS Digital Audio Output Sampling Rate : 32KHz, 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz Max bandwidth : 600MHz Max baud rate : 18Gbps Input/Output DDC signal : 5Volts p-p (TTL) Input cable distance : ?8m(1080P)/5m(4K) AWG24 HDMI standard cable utput cable distance : ?8m(1080P)/5m(4K) AWG24 HDMI standard cable Max working current : 600mA Power adapter : DC5V/1A Operating Temperature range : -0 to +40? Storage Temperature range : -15 to +55? Operating Humidity range : 5 to 85%RH (No Condensation) Storage Humidity range : 5 to 95%RH (No Condensation)
