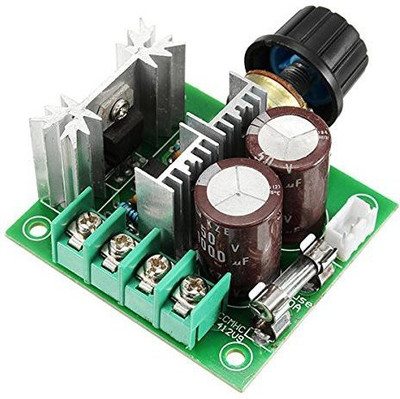

Specifications input voltage dc 12v-40v power 0.01-400w current rated current 8a, large, the maximum current 10a, static current 0.02a standby frequency 13khz pwm pulse width regulation range 10 -100 with 10a fuse 5 x 20mm standard size, with power supply reverse, control voltage over-voltage protection function with potentiometer if the forward and the reversal function is required, you can connect the positive and negative switch. Size 60 x 55 x 28mm, the positioning hole is 5mm from the edge of the board, and the diameter of the locating hole is 3.2mm.
