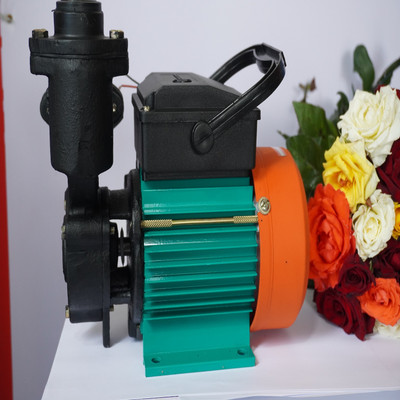

C.R.I. Miki Selfpriming monoblock pumpsets are power-driven by a totally enclosed fan cooled AC induction two pole motor, suitable for continuous duty. Motor stator is made of low watt loss silicon laminations assembled under pressure and rigidly locked in the frame. The windings are of high – grade enameled copper wire and are varnish impregnated. Construction of motor frames and usage of quality materials result in high performance, noise free operation and low temperature rise thereby increasing the life cycle of the motor. Pumps volute chamber and impellers are designed to give the best possible hydraulic efficiency and suction lift characteristics. APPLICATIONS Domestic water supply Apartment, bungalows and hotels Small gardens Civil applications Features : 1. Pumpset designed to deliver best 2. possible hydraulic performance 3. High graded enameled copper wires 4. Double sealed ball bearing ensures low noise level 5. In built thermal overload protector Compact and fascinate in design Specifications: * Power Range 0.5HP and 1HP (0.37 kW and 0.75 kW) * Speed 2880 RPM Version Single phase 220 – 240V, 50Hz AC Supply * Maximum Total Head Upto 30 Mtrs * Maximum Flow Rate Upto 3050 lph * Degree of Protection IP 58 * Direction of Rotation 1Ph-Clockwise from driving end * Type of Duty S1 (Continuous)
