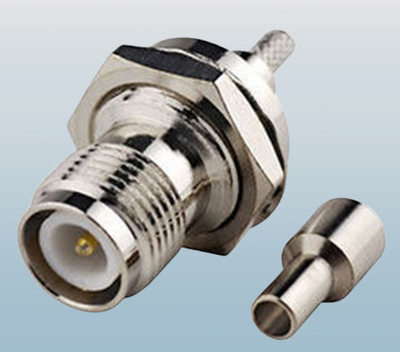

TNC Female Bulkhead Crimp Connector for LMR-1001. Mechanical SpecificationsCrimp Length (Body Depth): 1.8-2.2 cmBreadth (Flange Diameter): 2.5-3.0 cmHeight (Total with Flange): 1.5-2.0 cmWeight: 0.03-0.06 kg2. Key FeaturesConnector Type: TNC Female Bulkhead (Panel Mount)Termination: Crimp-style (for LMR-100 cable)Mounting: Threaded bulkhead nut for secure panel installationMaterial:Body: Nickel-plated brassNut/Flange: Stainless steelSealing: Typically includes rubber gasket (weather-resistant)3. Electrical SpecificationsFrequency Range: DC to 6 GHzImpedance: 50 OhmsMax Voltage: 330V RMSMax Current: 3AVSWR: <1.5:14. Cable CompatibilityDesigned specifically for LMR-100 cable (OD: 2.79mm / 0.11")Crimp Tool Required: Compatible with LMR-100 crimp dies5. Typical ApplicationsWi-Fi antennasGPS systemsSmall cellular devicesRF test equipment
