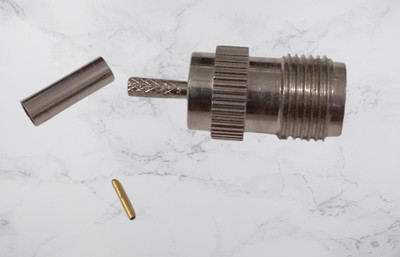

1. Mechanical DimensionsParameterMeasurementLength1.8–2.2 cmBreadth1.5–1.8 cm (body diameter)Height1.2–1.5 cm (without cable)Weight0.02–0.04 kg2. Key FeaturesType: TNC Female (F), 50Ω impedanceTermination: Crimp-style (requires LMR-100-specific crimp tool)Materials:Body: Nickel-plated brassContacts: Beryllium copper (spring-loaded center contact)Frequency Range: 0–6 GHzVSWR: <1.5:1 up to 3 GHz3. Cable CompatibilityDesigned exclusively for Times Microwave LMR-100 (2.79mm OD)Crimp Zones:Center conductor: 0.9–1.1 mmOuter braid: 2.6–2.9 mm4. Performance DataCharacteristicValueMax Voltage330V RMSMax Current3A continuousInsertion Loss0.3 dB @ 3 GHz
