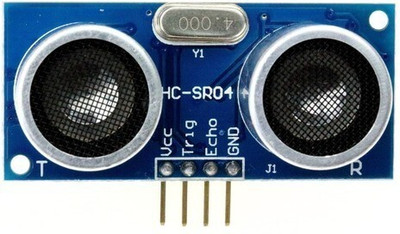

Ultrasonic ranging module HC -SR04 provides 2cm -400cm non-contact measurement function, the ranging accuracy can reach to 3mm. The modules includes ultrasonic transmitters, receiver and control circuit. The basic principle of work:1. Using IO trigger for at least 10us high level signal. 2. The Module automatically sends eight 40 kHz and detect whether there is apulse signal back. 3. IF the signal back, through high level , time of high output IO duration is the time from sending ultrasonic to returning. Test distance = (high level time × velocity of sound (340M/S)/2. Working Voltage: DC 5 V, Working Current: 15mA, Working Frequency: 40Hz, Max Range: 4m, Min Range: 2cm, Measuring Angle: 15 degree, Trigger Input Signal: 10uS TTL pulse, Echo Output Signal: Input TTL lever signal and the range in proportion, Dimension: 45*20*1
